WW-P25 · Forged passenger and touring wheels

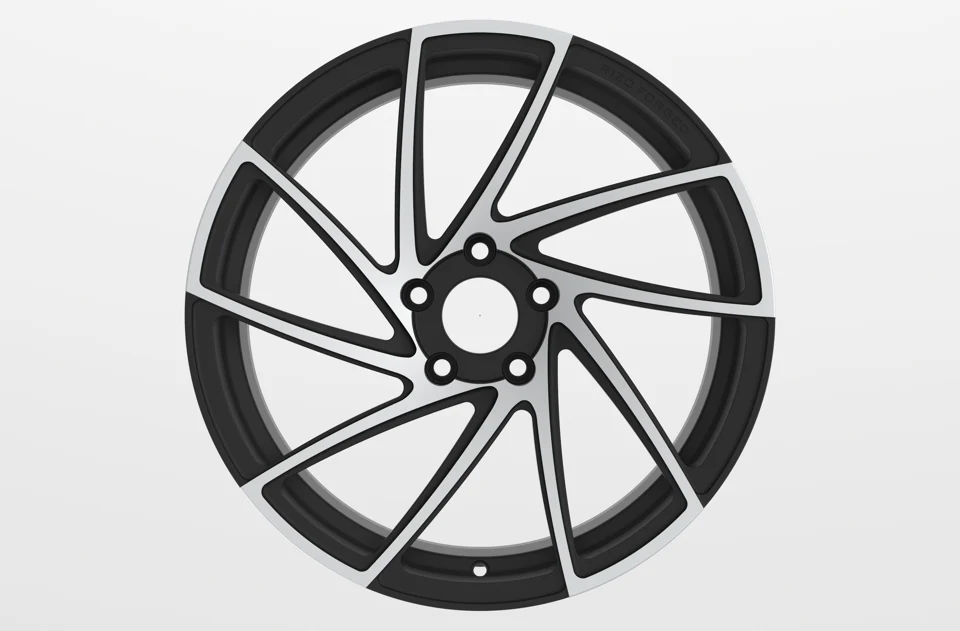

Directional Split-Spoke Alloy Wheel - 5168
Passenger-car aftermarket; approve vehicle, axle load and brake clearance.
| Design model | 5168 |
|---|---|
| Base size | 18 x 8 in (457.2 x 203.2 mm) |
| PCD range | 100-120 mm |
| ET / first size | 28-45 mm |
ET and bore refer to the first listed size. Other sizes require their own drawing; no load rating is claimed.
Construction & Material
Directional Split-Spoke face design. Alloy, process and heat treatment are specified in the approved configuration.
Options
Bore, first size: 57.1-73.1 mm. Finish and drilled pattern by approved drawing; PCD ranges do not confirm bolt count.
Size options
18 x 8 in (457.2 x 203.2 mm); 19 x 9.5 in (482.6 x 241.3 mm)
Procurement Value
2 size options in one identified design. Freeze fitments and finishes for repeat batch ordering.
Mounting & Selection
Vehicle/year/trim, brake package, diameter/width, lug count/PCD, center bore, offset, load, TPMS and finish.
Standards & Qualification
FMVSS 110/120 applicability; SAE J2530 aftermarket test program. Fitment and test evidence are required for the supplied configuration.
Packing & Delivery
Actual packed dimensions, gross mass and stack limit to be confirmed. Protect rim edges and finished surfaces. Matched multi-piece components must be secured and identified together.
Model Approval
Confirm the quoted model, production drawing, load and fitment evidence before ordering. Reference specifications are not a supply guarantee.
